Industrial Casters Boost Stability and Mobility for Heavy Machinery

Imagine a precision machining device developing subtle vibrations due to uneven flooring—the consequences in high-precision manufacturing could be catastrophic. For heavy machinery requiring frequent relocation, unstable positioning not only compromises efficiency but creates safety hazards. What technological solution enables these massive structures to stand rock-solid when needed yet move effortlessly when required? Today we examine the industrial world's silent stabilizers: adjustable leveling casters.

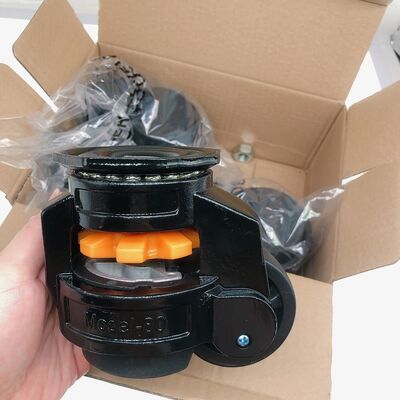

While conventional casters simply enable mobility, industrial-grade leveling casters serve a far more sophisticated purpose. The exemplary 80F series adjustable leveling casters demonstrate this perfectly through their primary feature: leveling capability. Much like adjusting uneven table legs, these casters function as "extendable limbs" for industrial equipment. By rotating the base adjustment knob, operators can precisely modify caster height to compensate for floor irregularities, maintaining perfect stability and level positioning.

This design proves invaluable for vibration-sensitive applications including precision instruments, automated production lines, and heavy machine tools. Beyond ensuring operational accuracy, it minimizes vibration-induced wear, significantly extending equipment lifespan. An additional safety feature includes a locking mechanism—once leveled, the adjustment knob locks securely to prevent accidental loosening during operation.

The 80F series' streamlined exterior belies its sophisticated engineering. The framework combines high-grade polyamide (PA) with aluminum alloy—PA offers outstanding wear resistance, impact strength, and flexibility, preventing deformation under heavy loads, while aluminum provides robust yet lightweight corrosion-resistant support. This material synergy delivers exceptional durability and load-bearing capacity.

The core swivel mechanism utilizes a top-plate design allowing full horizontal rotation for superior maneuverability. When mobility is required, retracting the leveling knobs converts the casters into conventional swivel wheels for easy equipment relocation. At the destination, simply re-extend the knobs to stabilize and level the machinery.

In industrial applications, weight capacity remains a critical performance metric. The 80F series excels with single-caster capacities reaching 500kg, while four-caster configurations support up to 1,000kg—easily stabilizing even the heaviest industrial equipment.

The series offers multiple models with progressive capabilities:

• I016-040F: 40mm wheel diameter, 50kg/200kg capacity (single/four casters) for light equipment
• I016-060F: 50mm diameter, 250kg/500kg capacity for medium-duty applications
• I016-080F: 62mm diameter, 500kg/1,000kg capacity (featured heavy-duty model)
• I016-100F: 75mm diameter, 750kg/1,500kg capacity with enhanced rollability
• I016-120F: 75mm diameter, 1,000kg/2,000kg capacity for ultra-heavy equipment
• I016-150F: 90mm diameter, 1,500kg/3,000kg capacity (maximum load series)

Selection criteria should consider equipment weight, operating environment, and relocation frequency. Generally, larger wheels decrease rolling resistance and increase capacity, though with slightly larger footprints.

The 80F series serves diverse industrial scenarios requiring both stability and mobility:

• Precision instruments: Microscopes, spectrometers, 3D printers requiring vibration-free operation
• Automated production: Assembly line fixtures and conveyors needing precise positioning
• Heavy machine tools: CNC lathes/mills where vibration absorption ensures machining accuracy
• Warehousing systems: Automated storage racks and transport robots
• Display/Stage equipment: Mobile yet stable platforms for exhibitions/performances
• Medical/fitness equipment: Large diagnostic machines and exercise apparatus

Whether equipment requires frequent movement or permanent stabilization, leveling casters provide optimal solutions.

Beyond swivel-type leveling casters, threaded stem versions accommodate alternative mounting requirements—whether for threaded hole fixtures or direct base mounting. Custom specifications regarding dimensions, load ratings, or materials can be accommodated through specialized engineering solutions.

Adjustable leveling casters have become indispensable industrial components, combining stabilization, precision leveling, massive load-bearing, and seamless mobility to safeguard manufacturing efficiency and operational safety. Selecting appropriate leveling casters establishes the fundamental stability infrastructure for industrial equipment.
