6 Inch Industrial Material Carts Caster Wheels – Heavy-Duty Swivel & Side Brake Mobility Wheels

500
MOQ
negotiated
Price
6 Inch Industrial Material Carts Caster Wheels – Heavy-Duty Swivel & Side Brake Mobility Wheels
Features Gallery Product Description Request A Quote
Features
Specifications
Name: 6 Inch Industrial Material Carts Caster Wheels – Heavy-Duty Swivel & Fixed Mobility Wheels
Wheel Diameter: 100/125/150/200 Mm
Tread Width: 50 Mm
Wheel Material: Polyurethane
Bearing: Double Ball Bearing
Load Height: 144/164/186/240 Mm
Plate Size: 115×100 Mm
Hole Spacing: 93.6×67 Mm / 77.2×76.6 Mm
Load Capacity: 260/320/350/400 Kg Per Caster
Finish: Zinc-plated Steel
Mounting: Top-plate
Swivel Radius: 90/102.5/104/151 Mm
Temperaturerange: -20°C To 80°C
Application: Factory, Equipment
Highlight:

6 inch industrial caster wheels

,

heavy-duty swivel casters with brake

,

material cart mobility wheels

Basic Infomation
Place of Origin: China
Brand Name: Dajin
Certification: Rosh/CE/IOS
Model Number: HTC-001
Payment & Shipping Terms
Packaging Details: 21X21X21 cm
Delivery Time: 25
Payment Terms: T/T,L/C
Product Description
6 Inch Industrial Material Carts Caster Wheels – Heavy-Duty Swivel & Side Brake Mobility Wheels
Features
  • 6″ Standard Wheel Diameter: Ideal balance of load capacity and maneuverability for industrial carts.
  • Durable Wheel Options: Commonly available with rubber, PU, nylon or TPR tread for floor protection and smooth roll.
  • Swivel & Fixed Mounting: Can be configured as swivel or fixed to suit cart design.
  • Precision Bearings: Ensures low resistance rolling and consistent performance.
  • Sturdy Bracket Construction: Zinc-plated or coated steel bracket improves durability and corrosion resistance. (ECO friendly coating)

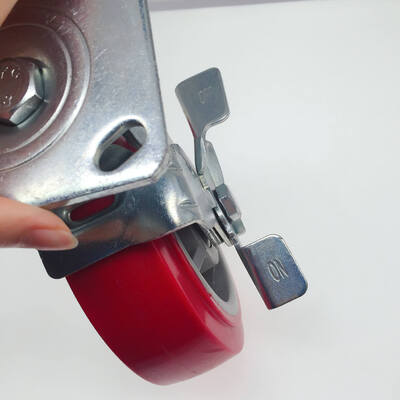

  • Side brake: tread lock, wheel lock, lock the wheel only.
Function

This 6 inch caster wheel is engineered for heavy-duty mobility of material handling carts, warehouse trolleys, and industrial equipment. It provides smooth rolling performance across various floor surfaces and enhances movement efficiency in logistics and manufacturing environments. The swivel design (if equipped) allows easy steering and positioning in tight spaces.

Application
  • Warehouse material handling carts
  • Industrial and manufacturing trolleys
  • Heavy equipment transport platforms
  • Logistics distribution center carts
  • Workshop and factory utility carts
Product Advantage
  • High Load Capability: 6″ diameter allows for higher load capacity suitable for medium to heavy applications.
  • Smooth Mobility: Wheel tread materials like rubber or PU provide smooth, low-noise operation and protect floor surfaces.
  • Versatile Use: Adaptable to a wide range of carts and handling equipment across industries.
  • Durable Construction: Reinforced steel brackets and quality bearings mean longer service life even under frequent use.
  • Easy Installation: Standard top plate mounting makes installation straightforward on most cart frames
Technical Parameters
Wheel Diameter Load Capcity Tread Width Load Height Swivel Radius Plate Size Hole Spacing Hole Dia
100mm/4'' 220kgs (485lbs) 50mm 135mm 86.5mm 114X100mm 85*73mm 11mm
125mm/5'' 280kgs (617lbs) 50mm 158mm 104.5mm 114X100mm 85*73mm 11mm
150mm/6'' 420kgs (926lbs) 50mm 235mm 143mm 114X100mm 85*73mm 11mm
