Features Gallery Product Description Request A Quote

Features

Specifications

Name: 3 Inch PVC Or PU Caster Wheels For Industrial Furniture & Trolley

Wheel Diameter: 75 Mm

Tread Width: 32 Mm

Bearing: Ball Bearing

Wheel Material: PVC (polyvinylchloride)

Top Plate Size (mm): 92*65 Mm

Hole Spacing: 75*45 Mm

Thread Size: M12 × 30 Mm

Load Capacity: 75 KG

Color: Grey

Sample: Available,can Be Offer

Surface Treatment: Zinc Plated

Packing: Cartons

Temperaturerange: -20°C To 80°C

Application: Industrial, Office, Retail, Home

Highlight:

3 inch PVC caster wheels

industrial trolley casters

PU wheels for furniture

Basic Infomation

Place of Origin: China

Brand Name: Dajin

Certification: Rosh/CE/IOS

Payment & Shipping Terms

Delivery Time: 25

Payment Terms: T/T,L/C

Gallery

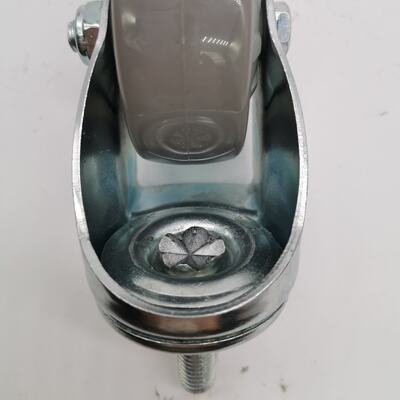

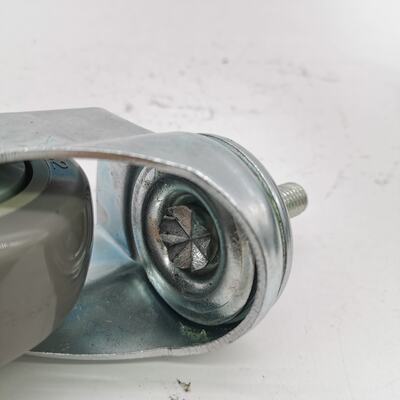

3 Inch PVC or PU Caster Wheels for Industrial Furniture & Trolley

Product Description

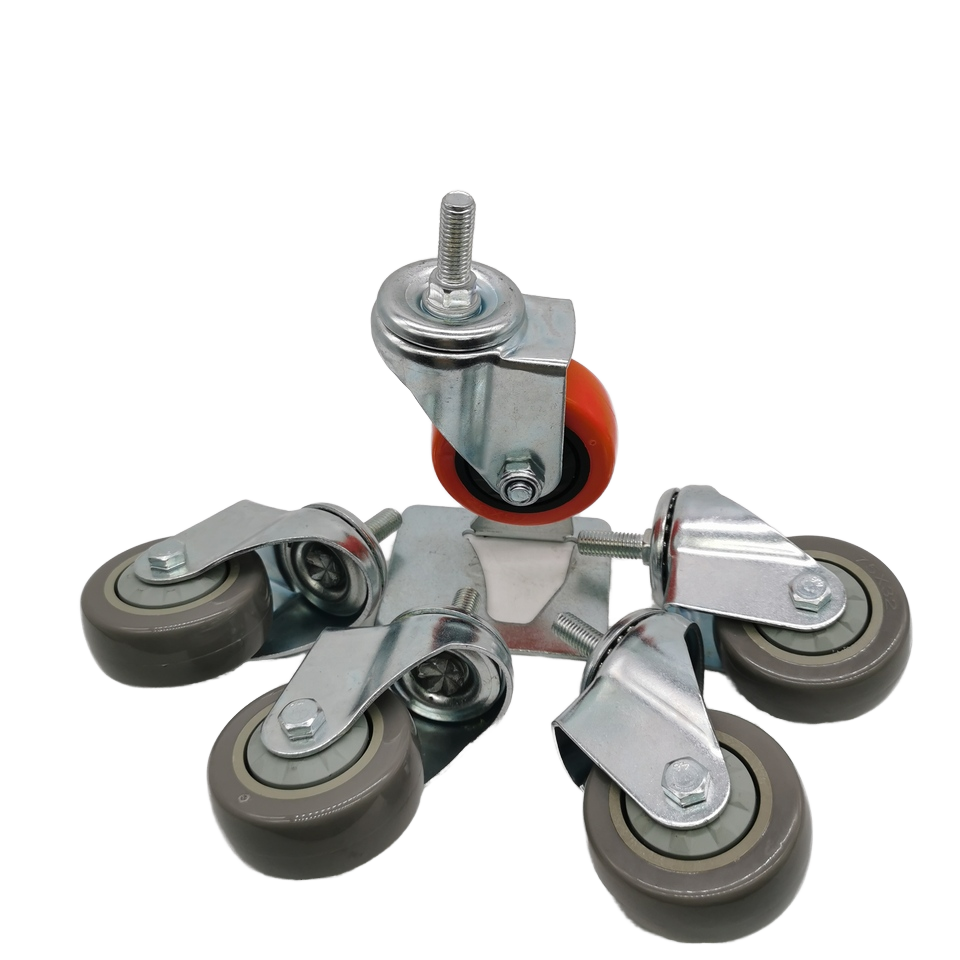

3 Inch PVC or PU Caster Wheels for Industrial Furniture & Trolley

Features

This 3 inch caster wheel is made with premium polyurethane (PU) tread bonded to a sturdy hub, delivering excellent wear resistance, smooth rolling, and floor protection — ideal for continuous use on hard surfaces such as concrete, wood, and tile. PU caster wheels balance strength and quiet performance, making them suitable for both industrial and commercial furniture trolleys.

Function

Designed to enhance mobility, these PU caster wheels enable smooth directional changes and reduced pushing effort for furniture, equipment carts, display stands, and service trolleys. The swivel versions allow 360° rotation for maximum flexibility, while fixed types provide straight-line stability. Optional brake models help secure equipment in place when needed.

Application

Ideal for a variety of settings, including industrial furniture trolleys, workshop carts, logistics dollies, hospital equipment, office furniture, and retail display systems. These 3 inch PU caster wheels deliver reliable performance in warehouses, factories, offices, hospitals, and homes where smooth, quiet mobility and floor protection are required.

Product Advantages

Wear-Resistant PU Material – Polyurethane offers long service life, strong rebound, and resistance to abrasion.
Quiet & Smooth Rolling – Ideal for environments where noise and floor marking must be minimized.
Flexible Movement Options – Available in swivel, fixed, and brake versions to suit different uses.
Versatile Mounting – Compatible with top plate, stem, or threaded installations depending on trolley design.
Reliable Load Support – Well-suited for light to medium duty loads typical of furniture, carts and mobile equipment.

Technical Parameters

Desc.	Wheel diameter (mm)	Wheel width (mm)	Overall height (mm)	Top plate size (mm)	Hole spacing (mm)	Load capacity (kg/pc)
Light medium duty caster, PVC wheel with double ball bearing, rigid.	75	32	106.5	92*65	74.5*45	70
	100	32	130.5	92*65	74.5*45	80
	125	32	155	92*65	74.5*45	90
Light medium duty caster, PVC wheel with double ball bearing, swivel.	75	32	106.5	92*65	74.5*45	70
	100	32	130.5	92*65	74.5*45	80
	125	32	155	92*65	74.5*45	90
Light medium duty caster, PVC wheel with double ball bearing, swivel with total brake.	75	32	106.5	92*65	74.5*45	70
	100	32	130.5	92*65	74.5*45	80
	125	32	155	92*65	74.5*45	90
