Name: Grey Silent TPR Caster Wheels with Top Plate Mount and Locking Mechanism for Supermarket Trolleys
Brand: Zhongshan Dajin Caster Manufacturing Co., Ltd.
SKU: HTC-001
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Grey 2 / 3 / 4 Inch Silent TPR Caster Wheels Swivel Top Plate Locking Castors For Supermarket Trolley

Wheel Diameter: 50 Mm / 75 Mm / 100 Mm

Tread Width: 18/25 Mm

Bearing: Plain

Load Height: 69 Mm / 100 Mm / 125 Mm

Hole Size: 8.5 Mm

Load Capacity: 50 /75 Kg Per Wheel

Installation: Top-plate Mount

Wheel Material: Themoplastic Rubber + Polyurethane

Application: Supermarket Trolley, Carts

Highlight:

Silent TPR Caster Wheels

Top Plate Mount Swivel Castors

Locking Mechanism Industrial Casters

Basic Infomation

Place of Origin: China

Brand Name: Dajin

Certification: Rosh/CE/IOS

Model Number: HTC-001

Payment & Shipping Terms

Delivery Time: 25

Payment Terms: T/T,L/C

Gallery

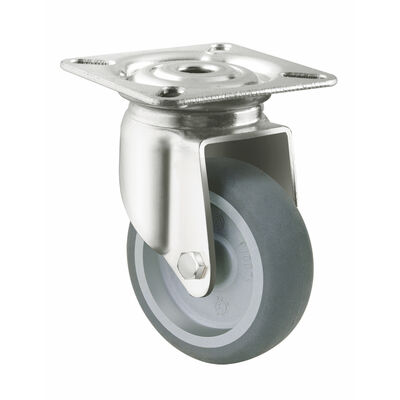

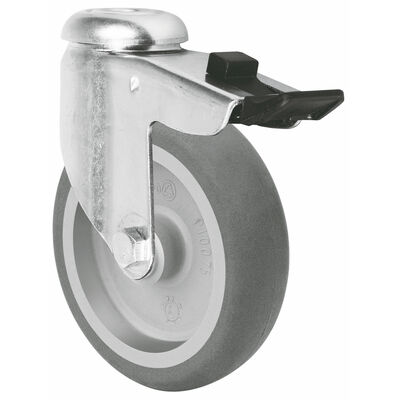

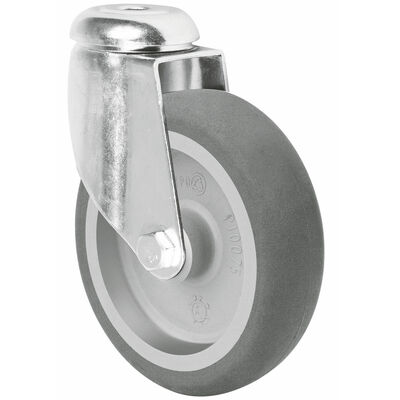

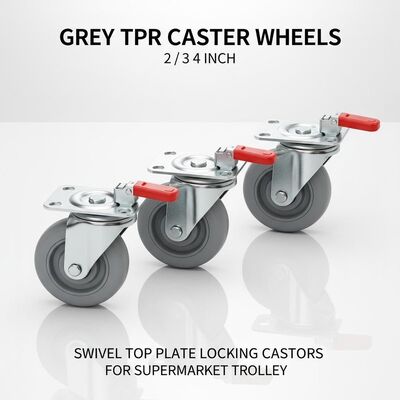

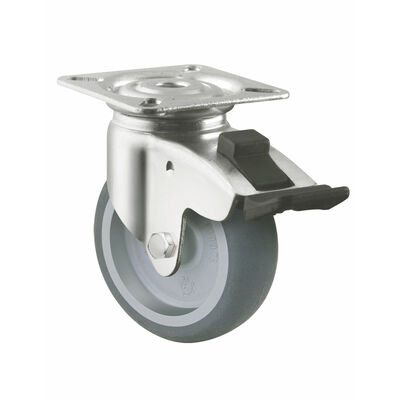

Grey Silent TPR Caster Wheels with Top Plate Mount and Locking Mechanism for Supermarket Trolleys

Product Description

Grey 2 / 3 / 4 Inch Silent TPR Caster Wheels with Swivel Top Plate Locking Castors

These silent caster wheels feature high-quality thermoplastic rubber (TPR) wheels that provide excellent shock absorption, quiet rolling, and non-marking floor protection. The durable swivel top plate bracket ensures stable support and smooth rotation. Designed for supermarket trolleys and service carts, these casters deliver reliable mobility and long service life.

Key Features

High-elastic TPR wheel for silent and smooth rolling
Non-marking material protects floors
Swivel design for flexible 360° movement
Optional locking brake for secure positioning
Durable bracket structure for long service life
Ideal for supermarket and commercial equipment

Function & Performance

The caster wheel is designed to provide smooth and stable movement for shopping trolleys and service carts. The elastic TPR material reduces vibration during transportation, while the swivel structure enables flexible 360-degree maneuverability. The optional locking brake allows the trolley to remain securely in place when needed.

Applications

These caster wheels are widely used in supermarket trolleys, display racks, service carts, storage carts, warehouse equipment, and light industrial machinery. They are ideal for supermarkets, shopping malls, warehouses, restaurants, offices, and other commercial environments requiring quiet and smooth mobility.

Technical Specifications

Parameter	Value
Material	TPR
Usage	Supermarket equipment, display bases, large-scale catering
Load capacity	50-75kgs
MOQ	500pcs
Includes Thread Guards	Yes
Caster Brake Type	No brake included
Optional mounting type	Threaded stem, bolt hole, solid stem
Mounting type	Top plate
Color	Grey
Bearing	Plain
Wheel diameter	2" 3" 4"
Warranty	Other
Type	SWIVEL
Wheel material	TPPE
Product name	Apparatus medium light duty institutional casters
Customized support	OEM, ODM
